Products Description

Model	DT-A8	DT-A12

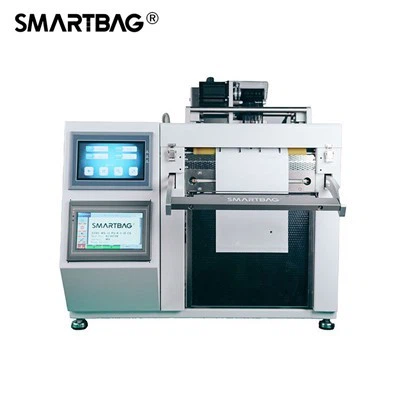

Description	Quickbag Machine 8" Standard Version	Autobag package Machine 12" Standard Version
Dimension (L×W×H) mm	483×680×570	483×750×570
Bag Width	6cm to 20cm	6cm to 30cm
Bag Length	10cm to 100cm
Film Thickness	0.04-0.15mm
Efficiency	35 bags / minute	35 bags / minute
Interface	7" HMI(multi-language menu)

Features and Benefits

• Optional TTO printer or SATO CL4NX to save labeling, sticking, ribbon saving function to reduce rib- bon wastage, support label print from Network

• Step sealing temperature control for stable sealing, prevent over seal and weak seal.

• First bag printing to reduce bag wastage and product on queue.

• Small foot print for easy installation, moving, setup, flexible for production change over.

• Top cover releasable design easy for maintenance, cleaning.

• External communication protocol for easy connection with feeder, counter to achieve automation.

Why choose us?

1.High precision intelligent temperature control system

It adopts a patented temperature control unit to ensure that the heat-sealing temperature remains stable all the time, avoiding heat attenuation caused by long - term operation and effectively improving the sealing quality. It supports a film thickness of 30 - 150μm and is suitable for medical - grade PE/PET materials and industrial composite films.

2.Dynamic Bag Length Detection Technology

Equipped with an intelligent sensor inside, it can automatically identify the bag length without pre - printed marks. It supports the detection of continuous unmarked bags, breaks through the bag length limitations of traditional models, and is compatible with multiple materials such as PE, kraft paper, and aluminum foil.

3.Triple Anti - Misoperation Design

Mechanical Interlock Device: Automatically locks when there is no foreign object in the sealing area to prevent mis - startup (patented technology).

Light Curtain Monitoring: The infrared light curtain continuously monitors the sealing area to avoid the risk of pinching (CE - certified).

Zero - Pressure Sealing: The magnetic levitation drive technology enables gentle closing, extending the service life of the equipment.
